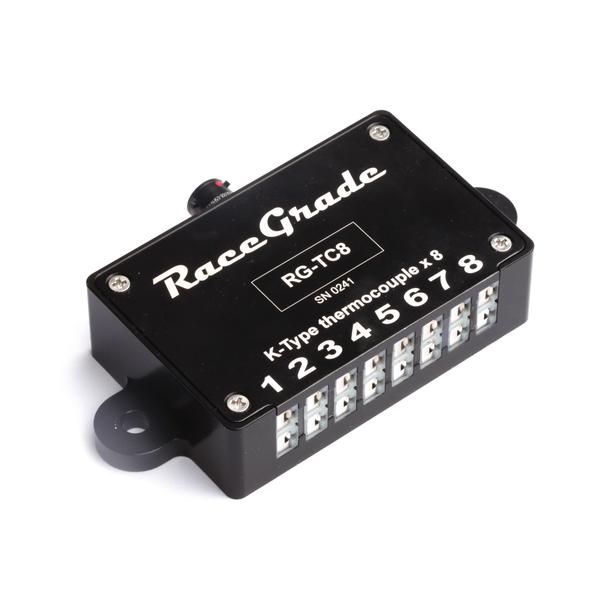

The RaceGrade TC8 is a CAN-based device that reads in up to 8 thermocouple temperature sensors, typically used for EGT, exhaust gas temperature measurement.
- Small, lightweight & compact package
- Easy to adapt and wire into any vehicle, just 4 wires; power, ground, CAN high and CAN low.
- Built in amplifiers for up to 8 channels
- Splash protection, but not waterproof
- Input Temp Range: 0 to 1000*C
- Thermocouple Style: K-type only
- Operating Voltage Range: 6 to 24vDC
- Operating Current Draw: < 0.1 Amps
- Operating Temp Range: -40*C to 120*C
- Dimensions: 3.5″x2.26″x1.0″
- Weight: 173 grams
- Mating Connector: ASL606-05SN *NOT INCLUDED
